Premium Countermarch Loom with Floating Breast Beam

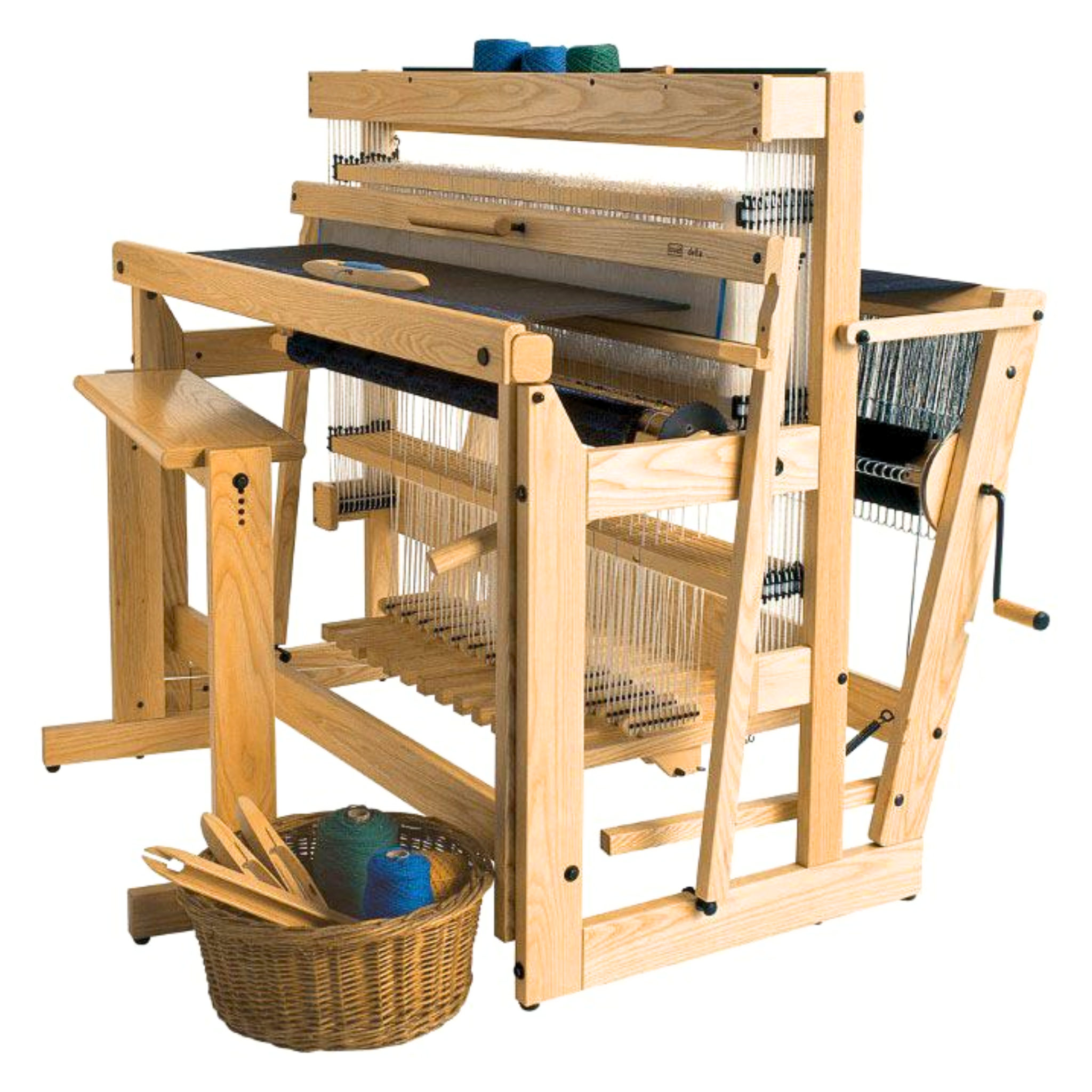

The Louët Delta Floor Loom is a professional-grade countermarch loom built in Holland from plantation-grown ash and finished in a clear, durable lacquer. It combines Louët’s patented parallel countermarch and floating breast beam to deliver clean sheds, consistent tension, and smooth treadling on everything from fine linen to sturdy rugs—plus ergonomics taller weavers appreciate.

Features & Benefits

Patented Parallel Countermarch System

• Cleaner sheds, fewer errors: Every shaft is positively lifted or lowered—no floating warp ends—so complex structures open cleanly.
• Generous 4" shed: Consistent, roomy sheds even with inelastic yarns like linen.

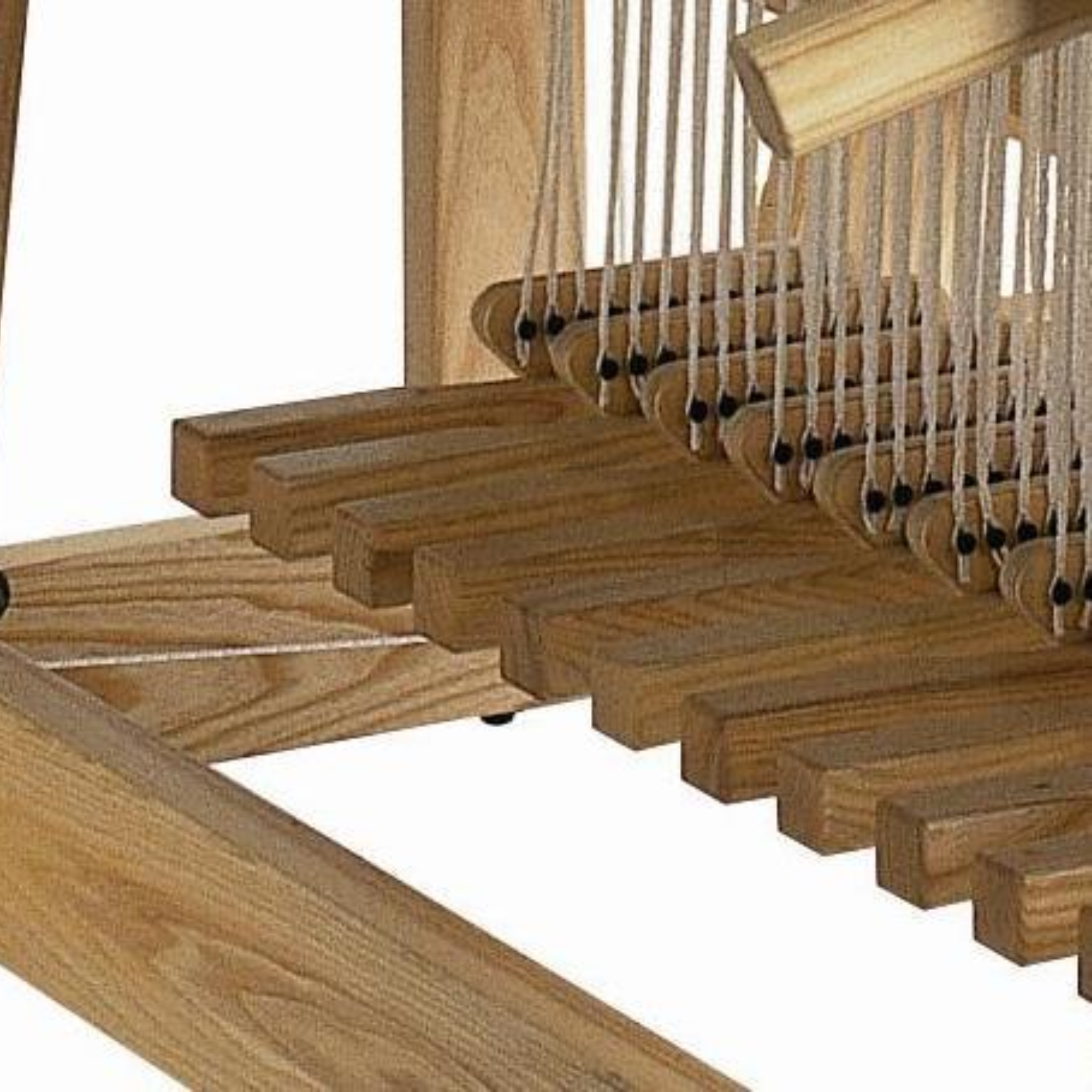

• Light treadling: Rear-hinged treadles and horizontal lams maintain balanced action to reduce fatigue during extended sessions.

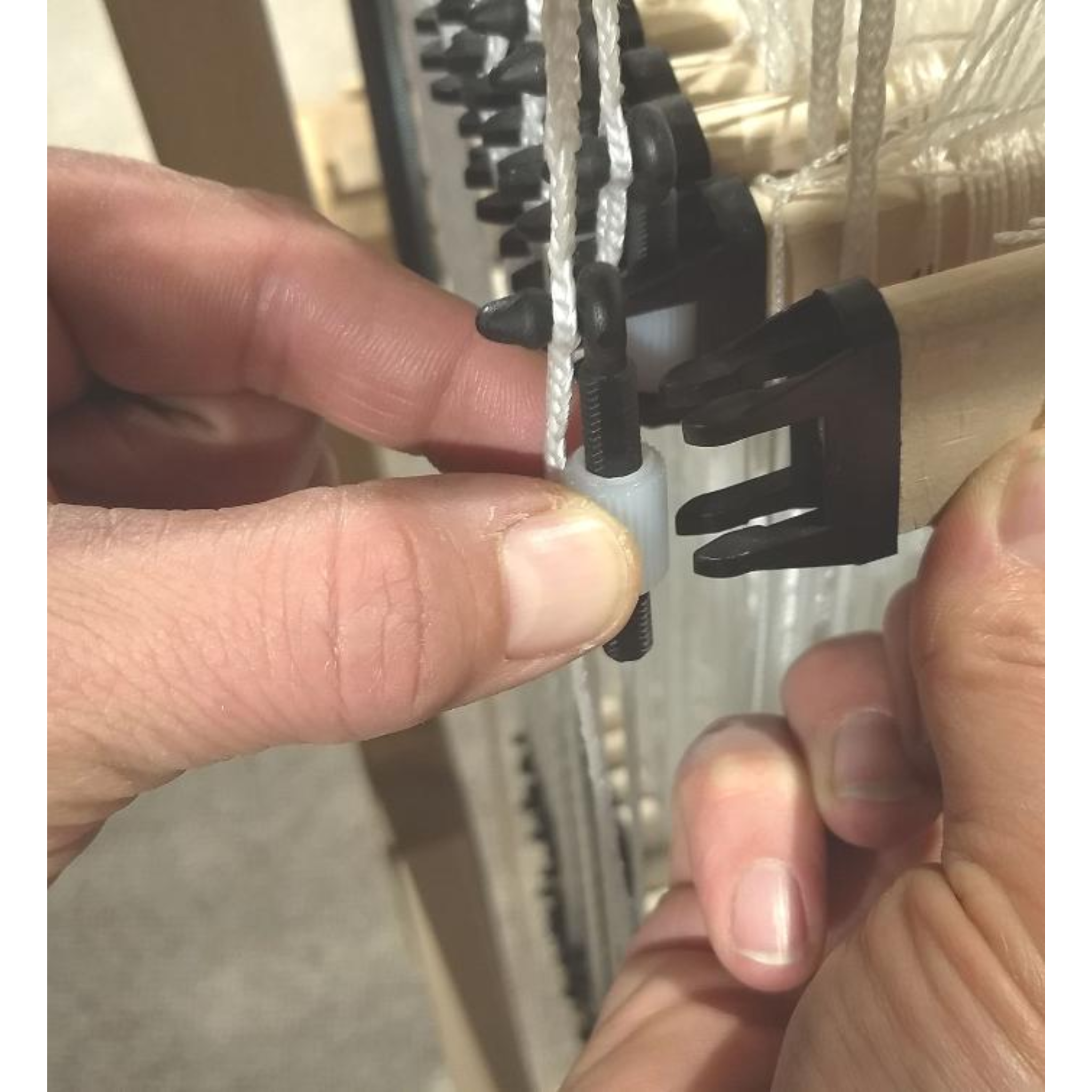

• Fast, tidy tie-ups: Standardized Texsolv cords and hooks (no knots) speed setup and resist slippage.

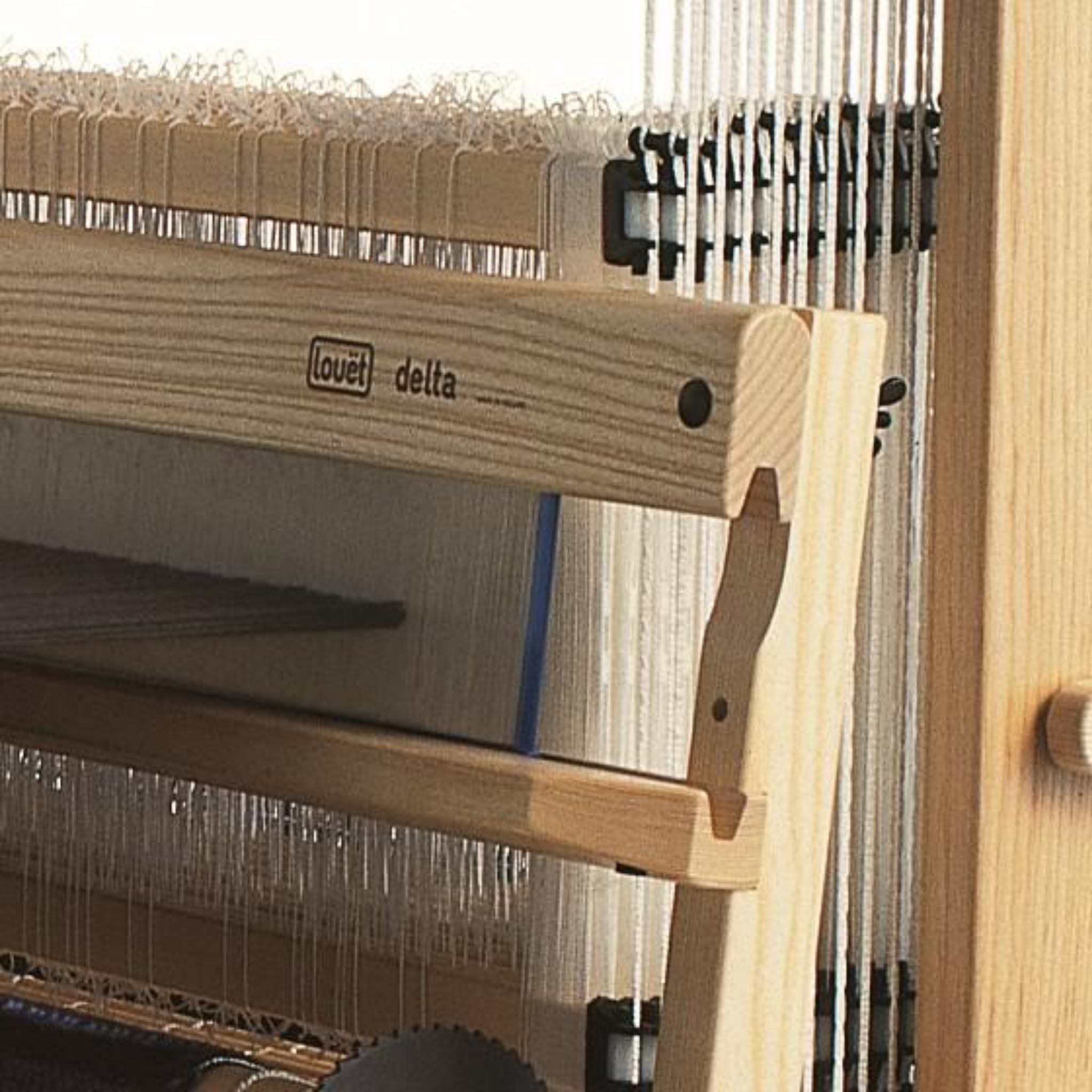

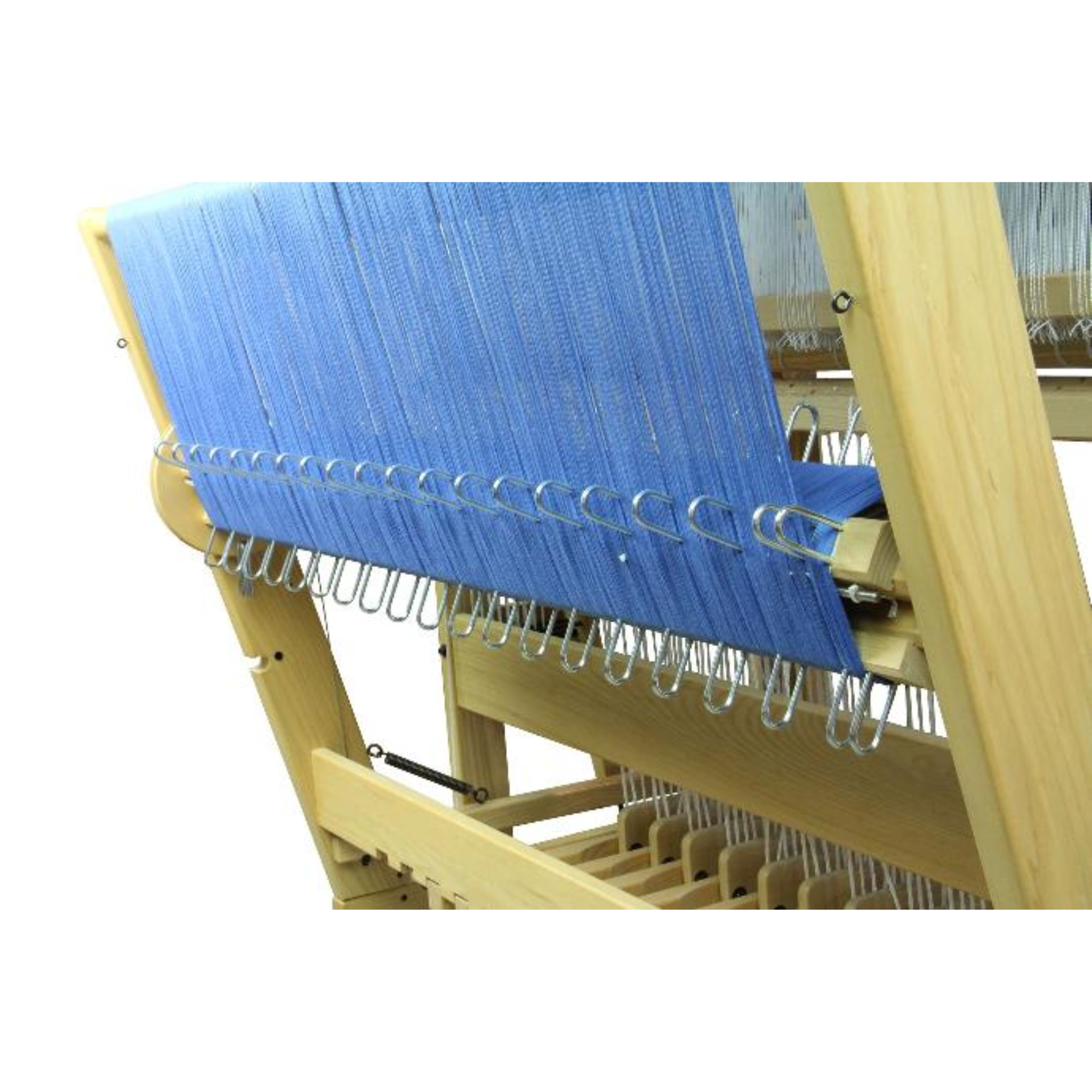

Floating Breast Beam

• Automatic tension return: When you advance, tension returns to the same setting for even picks across the project.
• Warp protection: Beam movement prevents sudden spikes that can stress linen, cotton, or rug warps.
• Fine control: Dial in tension in small increments to match fiber and sett.

Ergonomics for Taller Weavers

• Higher breast beam (~37.5"): Allows full leg extension while treadling—comfortable for weavers ~5'9" and up.
• Two weaving widths: Delta 110 cm (43.5") and Delta 130 cm (51") in 8- or 12-shaft configurations.
• Compact to move: Folds to ~30" deep to pass through standard doorways.

Built for Reliability

• Solid ash frame: Robust Dutch construction with semi-gloss lacquer.

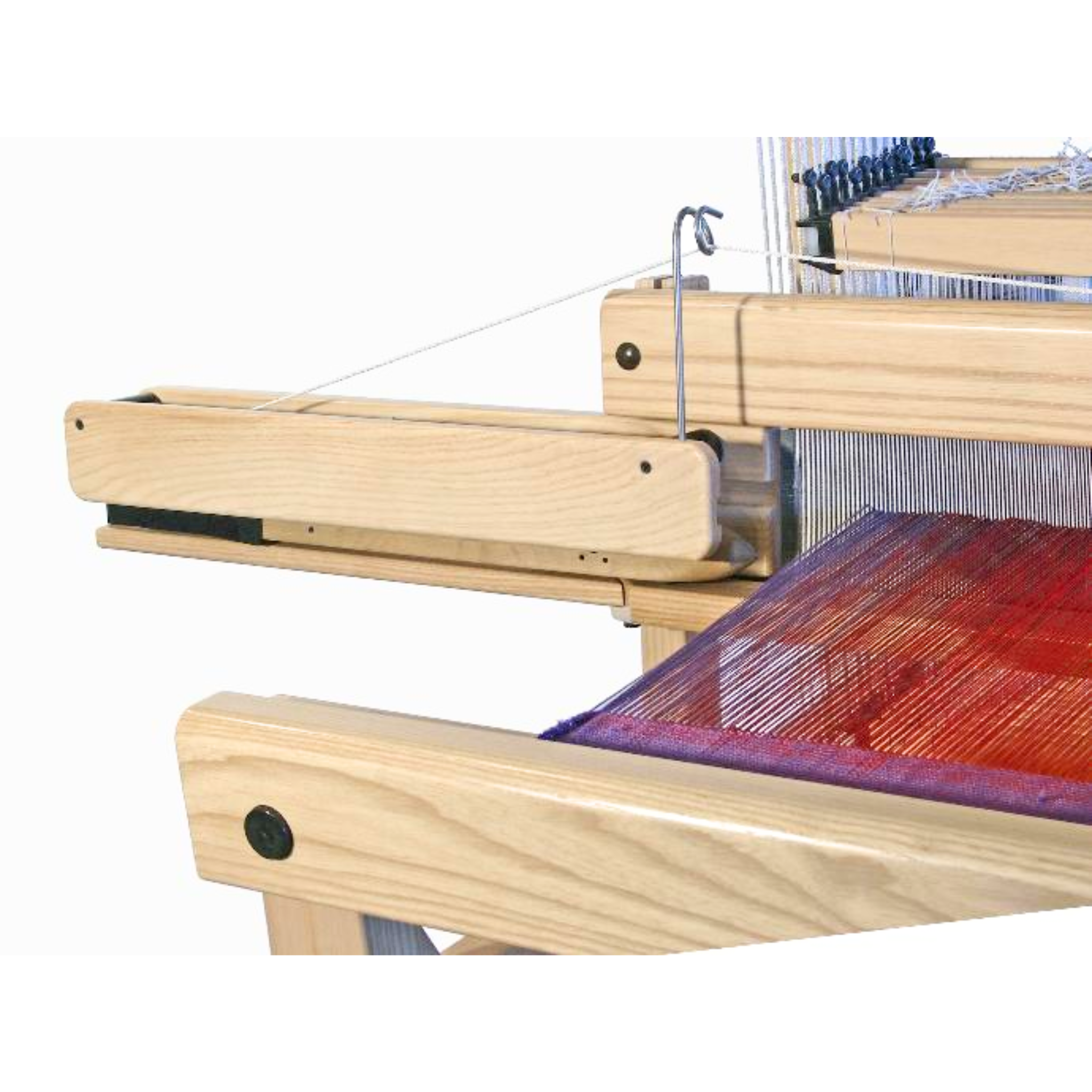

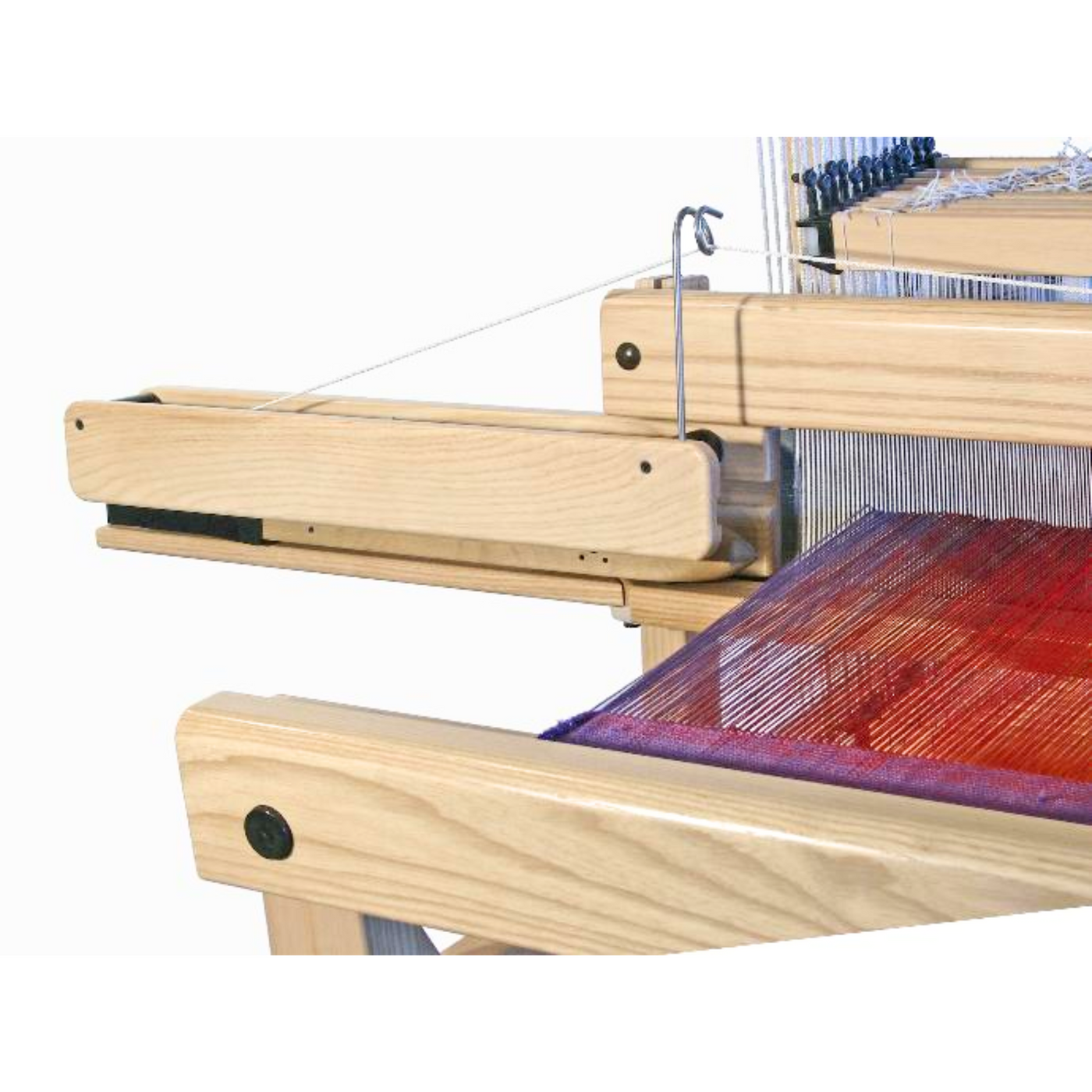

• Warp & cloth handling: Friction brake on warp beam; ratchet-and-pawl advance on cloth beam.
• Quiet, smooth weaving: Texsolv heddles included; stainless steel 10-dent (40/10) reed.
• Pre-assembled castle: Shafts, lams, and parallel cords arrive as a unit, simplifying setup.

Sizes & Specs

• Models: Delta 110 (43.5" / 110 cm) • Delta 130 (51" / 130 cm)
• Shafts: 8 or 12
• Approx. dimensions (W × D × H): 110: 55" × 39" × 50" • 130: 63" × 39" × 50"
• Folded depth: ~30" (76 cm)
• Approx. weight: 110-8: ~194 lb (88 kg) • 130-12: ~222 lb (101 kg)
• Heddles included: Texsolv 330 mm (e.g., ~1200 on Delta 110-8; ~1400 on Delta 130)
• Included tools & extras: Built-in castle raddle (5 dpi / 2 dpc) with center mark, lease sticks, tie-up cords, 16 warp sticks, cloth guard

Unique Features

• Patented Parallel Countermarch for consistent, clean sheds.
• Floating Breast Beam keeps warp tension even after every advance.
• Ergonomic geometry favored by taller weavers; smooth, light treadling.
• Two widths / up to 12 shafts to match complex weaving goals.
• Pre-assembled castle reduces setup time; Texsolv throughout.
• Durable ash hardwood construction designed for decades of use.

Optional Accessories & Add-Ons

Customize your Louët Delta loom with purpose-built accessories that expand functionality, improve ergonomics, and open up advanced weaving techniques:

• Louët Delta Weaving Bench: Sturdy ash bench designed for the Delta’s working height.
• Second Warp Beam: Weave with differential tension and multiple warp sets.
• Sectional Warp Kit: Simplify beaming long warps with precision spacing.
• 4 Shaft Extension: Expand an 8-shaft Delta to 12 shafts for complex drafts.
• Treadle Height Adjusting Kit: Raise the treadles and footrest by 32 mm (1.25").
• 2 Additional Treadles: Add treadling flexibility for larger tie-ups.
• Flying Dutchman Shuttle: Specialty shuttle for smoother selvedges and tricky yarns.
• Fly Shuttle Device: Speed production weaving with a powered shuttle throw.
• Vertical Warping Mill: Rapidly measure and wind long warps with ease.
• Warping Frame / Board: Compact alternative for shorter warps or sampling.
• Sectional Warping Tools: Pegs and tensioning aids to pair with a sectional beam.
• Warp Tension Regulator: Maintain even tension across wide or complex warps.

• Stainless Steel Reeds: Durable reeds in multiple dents for varied setts.
• Corrugated Warp Separator: Protects and evenly spaces warp layers.
• Floor Loom Yarns: High-quality yarns chosen for strength and performance on the Delta.
• Weaving Book: Louët’s reference for tips, drafts, and techniques.

These accessories allow you to tailor the Delta to your weaving style—whether you need ergonomic comfort, faster warping, or the ability to tackle advanced structures.

FAQs

Is the Delta right for my experience level?
It’s ideal for intermediate to advanced weavers who want dependable sheds, precise tension, and a roomy working height. Newer weavers often choose the Louët Spring first, then step up to the Delta.

What comes in the box?
The pre-assembled castle (shafts, lams, parallel cords), Texsolv heddles, 10-dent stainless reed, built-in raddle, lease sticks, tie-up cords, warp sticks, cloth guard, and required tools.

How long does assembly take?
Most customers finish in about five hours with the included wrenches and PZ2 screwdriver. Re-check bolts after one month, then annually.

How does the floating breast beam help with linen or rugs?
It allows a small, controlled give in the front system so shed formation doesn’t spike tension—protecting inelastic warp yarns and keeping tension repeatable after each advance.

How much space will I need?
Delta 110 footprint: ~55" × 39" × 50"; Delta 130 footprint: ~63" × 39" × 50". Folded depth is ~30" to move through doors.

Are accessories available?
Yes—second warp beam, sectional warp kit (inch or cm), fly shuttle device, extra treadles/blocks, Louët bench (fixed or adjustable), warping tools, and more.

What are typical lead times?
Hand-built to order. Typical timelines range from a few months depending on width/shafts. Contact us for current availability.

Ready to Weave with Confidence

If you want a floor loom that pairs modern engineering with lasting comfort, the Louët Delta delivers: clean sheds, steady tension, quiet operation, and a working height that feels natural—project after project. Choose your width and shafts, add the accessories that fit your practice, and enjoy a loom built to serve for decades.
