The Louët Megado Dobby Loom is the flagship of Louët’s floor looms, built from lacquered ash hardwood and engineered for complex, multi-shaft weaving. Patented mechanics deliver light treadling, clean, countermarch-quality sheds, and consistent warp tension—ideal for production work and advanced structures.
Features & Benefits
Patented Light-Action Treadling System
- Effort with control: As you depress the treadle, the back beam rises slightly, reducing active warp tension so sheds open smoothly—even with many shafts.
- Countermarch-quality sheds: Large, even sheds support fast, reliable shuttle work on fine to firm warps.
Floating Breast Beam (Patented)
- Automatic tension return: After advancing, warp tension returns to the setting you chose—pick after pick.
- Protects delicate yarns: Prevents tension spikes on linen, cotton, and high-tension projects.
- Fine adjustments: Dial in small changes to match fiber, sett, and structure.
Dobby Control—Mechanical or Electronic (sold separately)
-

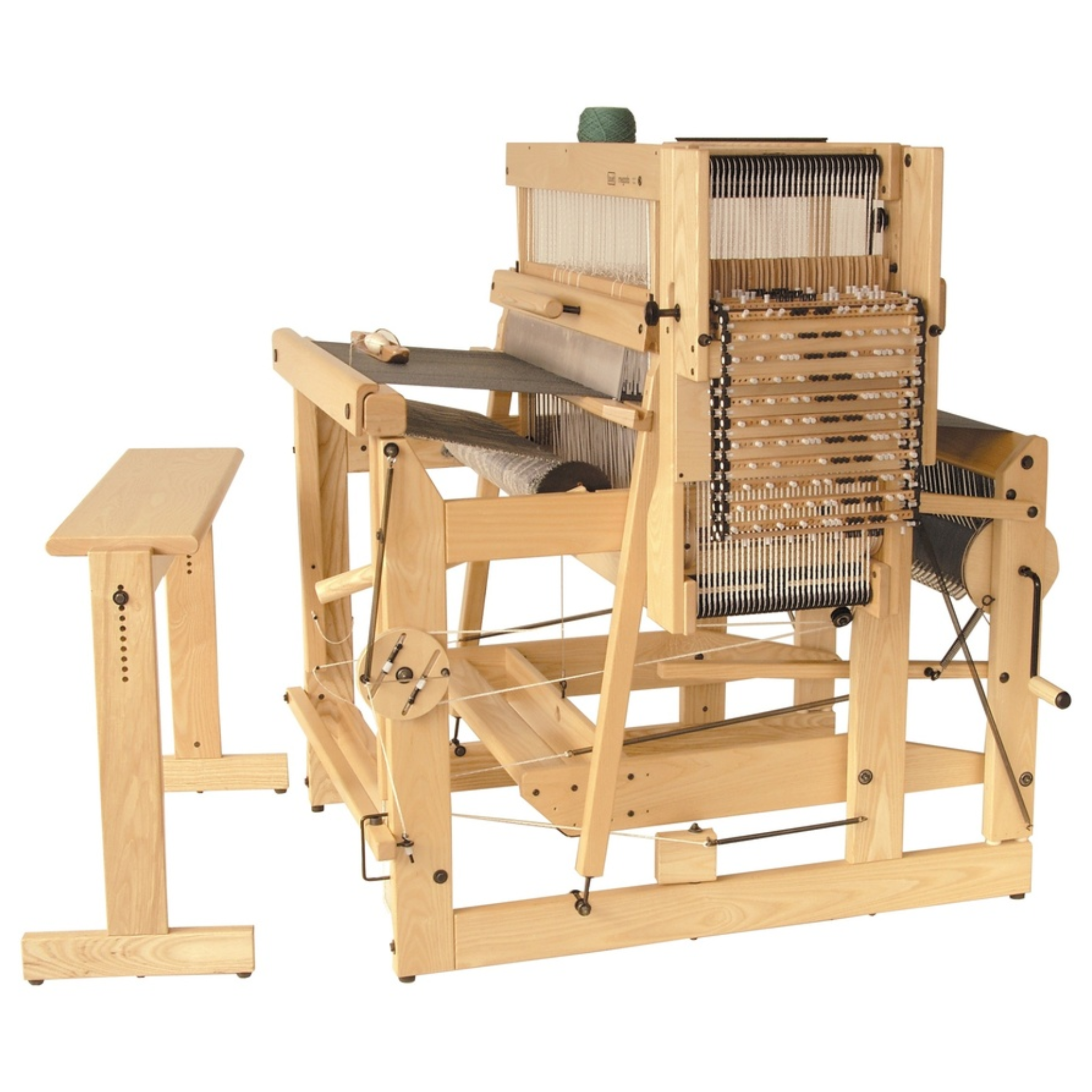

Mechanical dobby: Program bars with pegs select harness lifts—simple, computer-free operation.
-

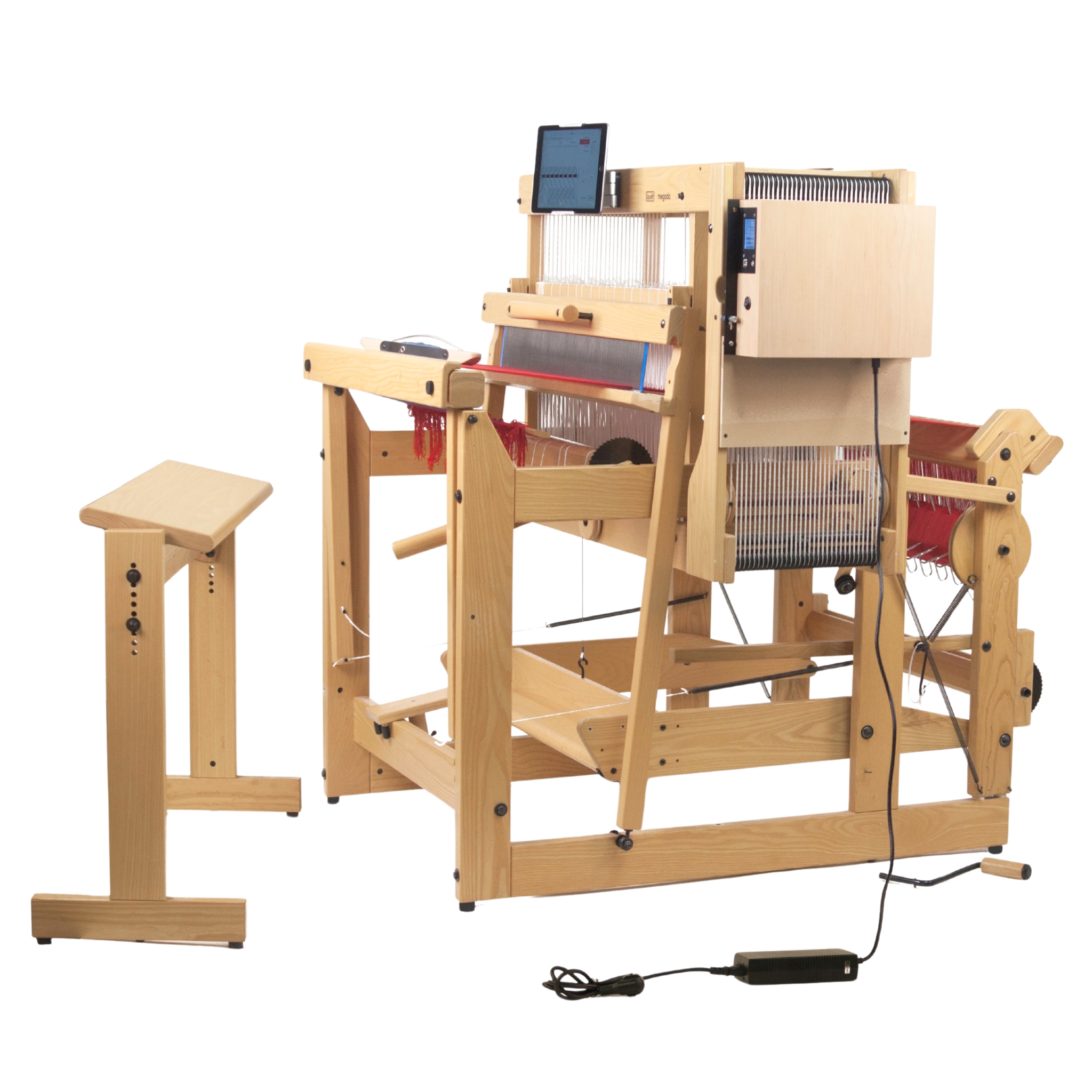

Electronic Dobby 2.0: Wi-Fi enabled with USB/WIF support; works with leading weaving software (Fiberworks, WeavePoint, ProWeave, PixeLoom, Patternland, Weavemaker, Winweef, Weave It) on PC or Mac.
-
Note: Dobby head is purchased separately from the loom frame.
Ergonomics for Long Sessions
- Light treadling: Smooth action even on 32-shaft setups reduces fatigue.
- Seated advance: Friction brake lets you advance the cloth from the bench.
- Spacious work area: Wide sheds and a large integrated shelf keep tools within reach.
Built-In Tools & Quality Construction
- Solid ash hardwood frame: Durable, stable, and finished in a protective semi-gloss lacquer.
- Included: Built-in raddle, stainless steel reed 40/10 (≈10 dpi), Texsolv heddles (900 on 16-shaft; 1700 on 32-shaft), lease sticks, tie-up sticks, and 16 warp sticks.
Sizes & Specs
Note: Dobby head (mechanical or electronic) is purchased separately.
| Configuration |
Dimensions (L × D × H) |
Weight |
Texsolv Heddles |
| Megado 40 / 16-Shaft |
36″ × 50″ × 52″ |
137 lb |
900 |
| Megado 70 / 16-Shaft |
47.625″ × 50″ × 52″ |
152 lb |
900 |
| Megado 90 / 16-Shaft |
55.5″ × 50″ × 52″ |
170 lb |
900 |
| Megado 110 / 16-Shaft |
63.375″ × 50″ × 52″ |
185 lb |
900 |
| Megado 130 / 16-Shaft |
71.25″ × 50″ × 52″ |
203 lb |
900 |
| Megado 40 / 32-Shaft |
36″ × 50″ × 52″ |
166 lb |
1700 |
| Megado 70 / 32-Shaft |
47.625″ × 50″ × 52″ |
181 lb |
1700 |
| Megado 90 / 32-Shaft |
55.5″ × 50″ × 52″ |
199 lb |
1700 |
| Megado 110 / 32-Shaft |
63.375″ × 50″ × 52″ |
214 lb |
1700 |
| Megado 130 / 32-Shaft |
71.25″ × 50″ × 52″ |
232 lb |
1700 |
Optional Accessories & Add-Ons
Unique Features
- Patented treadling system delivers large, even sheds with minimal effort.
- Floating breast beam keeps warp tension consistent after every advance.
- Mechanical or Electronic Dobby 2.0—choose traditional or computer-assisted control.
- Software compatibility with major weaving programs on PC/Mac.
- Production-ready build in lacquered ash with integrated tools and storage.
- Wide model range (16/32 shafts; 40–130 cm) for sampling to full-width textiles.
FAQs
Does the loom include a dobby head?
No. Choose the Mechanical or Electronic Dobby 2.0 separately to match your workflow and software needs.
Is treadling still light with many shafts?
Yes. The patented mechanism reduces active warp tension as you treadle, keeping action smooth—even on 32 shafts.
Which software works with Electronic Dobby 2.0?
Fiberworks, WeavePoint, ProWeave, PixeLoom, Patternland, Weavemaker, Winweef, and Weave It (PC/Mac). WIF files supported via USB; Wi-Fi browser control included.
What’s included with the loom?
Built-in raddle, stainless 40/10 reed, Texsolv heddles (900/1700), lease sticks, tie-up sticks, 16 warp sticks, and an integrated shelf.
How difficult is assembly?
The dobby castle comes pre-assembled. Plan on two people and ~5–6 hours for final assembly and checks.
What width and weight should I choose?
Select the weaving width that matches your projects (40–130 cm). Expect ~137 lb (40 cm, 16-shaft) up to ~232 lb (130 cm, 32-shaft).
Built for Complex Weaving—Designed for Daily Use
The Louët Megado gives you the freedom to weave ambitious structures with consistency and comfort. Choose your shaft count and width, pick the dobby control that fits your process, and rely on a loom engineered for years of dependable production and exploration.
